10 Gallon Steel Drum, UN Rated, Cover w/Bolt Ring
$39.00
Fast Shipping
Carrier information
24/7 Support
30 Days Money back Guarantee
Description
10 gallon steel drum with an open head, a removable white cover, and a bolt ring closure, sized for jobs where a 55-gallon drum is far too much. The black carbon steel body is new, unlined, and treated with a rust inhibitor that protects the steel before it’s filled. Small manufacturers, labs, maintenance shops, and specialty chemical and coatings sellers use this drum to ship and store modest quantities of liquids or solids in a UN-rated metal container.

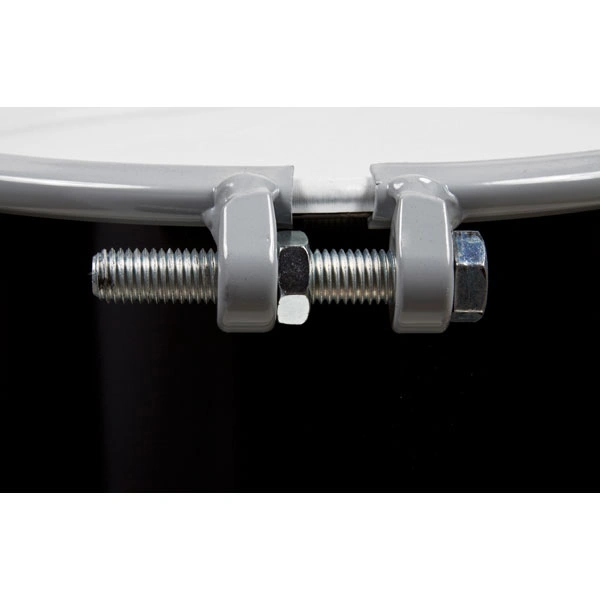

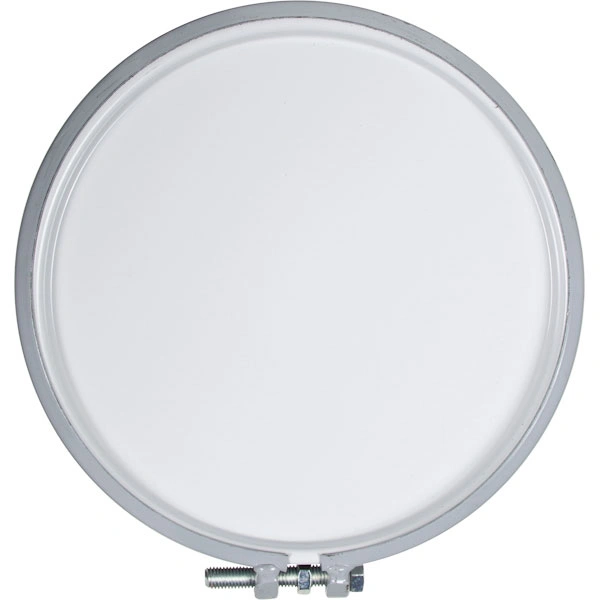

The open head design lets you scoop, pour, or package directly through the full top opening. An EPDM gasket seals the cover, and a 12-gauge bolt ring with a 4″ bolt and 5/8″ nut clamps it down. Tighten the ring to specification with a calibrated torque wrench for a proper closure.
Specifications
| Capacity | 10 gal (approx. 38 L) |
|---|---|
| Condition | New |
| Material | Carbon steel, black, rust inhibitor |
| Head type | Open head (1A2), white cover |
| Closure | Bolt ring, 12 gauge with 4″ bolt and 5/8″ nut |
| Gasket | EPDM rubber |
| Lining | Unlined |
| Steel gauge | 20/20/20 (top/body/bottom), 0.9 mm |
| UN rating, liquids | UN1A2/Y1.8/150 |
| UN rating, solids | UN1A2/X120/S |
| Inside dimensions | 14″ dia. x 17.4″ H |
| Outside dimensions | 14.3″ dia. x 18.9″ H |
Common Uses
Paints, inks, adhesives, resins, oils and greases, powders and granular materials, sample shipments, and hazardous waste collection in smaller volumes. The compact footprint fits on a shelf or bench and is easy to carry by hand when partially filled.
How It Compares
If you need a little more room, a 30 gallon open head steel drum uses the same bolt ring style. For a sealed drum with bung openings in this size, see the 10 gallon steel drum with 2″ and 3/4″ fittings. Browse all steel drums and barrels.
FAQ
What do the UN ratings mean?
For liquids it is tested to 1.8 specific gravity in Packing Groups II and III; for solids it covers up to 120 kg gross in Packing Groups I, II and III.
Is the drum lined?
No. It is unlined carbon steel with a rust inhibitor.
How do I close it properly?
Seat the cover on the gasket, fit the bolt ring, and tighten the bolt to specification with a calibrated torque wrench.
